| Brand Name : | DELONG TOOL |
| Model Number : | TNMG160404-43 |
| Certification : | CE、ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000000PCS/Year |
| Delivery Time : | 5day |

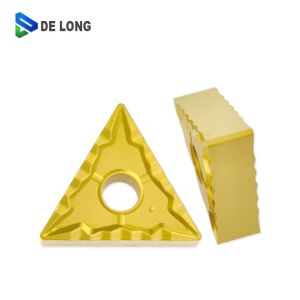

TNMG160404-43 Negative Rake Turning Tool Blade CNC Cutting Insert For Steel Machining
Brand: "DELONG" or OEM
The blades produced by our company are made of high-strength hard
alloy matrix, fine carbide particles, and advanced PVD/CVD coating.
The PVD coating temperature is between 300-450, the CVD coating
temperature is between 800-950, and the alloy substrate sintering
temperature is between 1380-1460. The thick coating, high
precision, wear-resistant blade, high rigidity, and high
deformation resistance make the tool suitable for heavy-duty machining.C
Noted: please inform us detail application so that we supply you suitable grade
DLP101: CVD coating color yellow,Suitable for processing soft steel below 28°, the yellow coating TIN thickness factor improves the resistance to collapse and impact.
DLP102: CVD coating color black,suitable for processing steel parts within 45 °, modulated steel, and quenched steel
DLP103: CVD coating dual color,suitable for semi precision and rough machining of steel parts.
The grades DLP101,DLP102,DLP103 are specialized parts for processing steel parts
DLT205: PVD coating color bronze,mainly used for stainless steel processing and steel parts processing
DL15TF: PVD coating color bronze,mainly used for stainless steel processing and steel parts processing
DL1008: PVD coating color black gray,mainly used for stainless steel processing and steel parts processing
The grades DLT205,DL15TF,DL1008 is a universal type suitable for processing steel/stainless steel parts
DLT214:PVD coating color is rainbow color,Suitable for processing high hardness materials such as steel parts below 55 degrees Celsius, stainless steel parts, and titanium alloys
LM718:PVD coating color nano blue red,Suitable for processing high hardness materials such as steel parts below 50 degrees Celsius, stainless steel parts, and titanium alloys
WC50:PVD coating color black,Suitable for processing high hardness materials, such as steel parts above 55 degrees Celsius, stainless steel parts, and titanium alloys
The grades DLT214,LM718,WC50 Most suitable for processing high hardness and difficult to machine materials
Cermet blade grade
TX920G : gray color suitable for ordinary steel parts
TX9201 : TIN yellow color coating suitable for steel and stainless steel parts
ST550 : Gray bright color suitable for processing steel parts, stainless steel parts, cast iron, with high standard quality
Specifications:
Inserts Shape | Type | Dimensions(mm) | Grade | |||||||||||||||||
| CVD coating | PVD coating | Cermet | Cc | |||||||||||||||||
| ΦIC | S | Φd | r | D L P 1 0 1 | D L P 1 0 2 | D L P 1 0 3 | D L K 1 0 2 | D L K 1 0 5 | D L T 2 0 5 | D L 1 5 T F | D L 1 0 0 8 | D L 1 4 5 8 | D L T 2 1 4 | L M 7 1 8 | W C 5 0 | T X 9 2 0 G | T X 9 2 0 1 | Y D 1 0 1 | ||
| TNMG160404-43 | 9.525 | 4.76 | 3.81 | 0.4 | ● | ● | ● | ||||||||||||
| TNMG160408-43 | 9.525 | 4.76 | 3.81 | 0.8 | ● | ● | ● | |||||||||||||
| TNMG160412-43 | 9.525 | 4.76 | 3.81 | 1.2 | ● | ● | ● | |||||||||||||
● Stock available O Make-to-order
Feature:
Delivery time: 8-20 days, depends on the stock and productions.
Payment: 100% before shipment
unit weight: 9.5-28.7g/pc
Terms: Except for special explanation, all quotation are based on FCA Zhuzhou, Hunan, China, excluding freight and insurance
Packing: plastic box(10pcs/package, white color), and cartons
OEM: According to the requirement, supply neutral packing, without label and marking.
|
|
